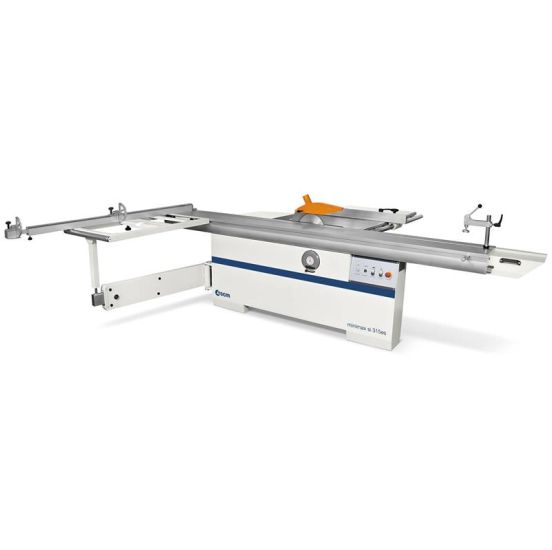

Circular saw with tilting blade with professional performances for a quality without compromises.
The minimax si 315es has proven itself in American cabinet shops for many years. This machine boasts a full 10’ stroke, and features normally found on much more expensive machines, for a fraction of the cost. This machine incorporates a top quality 4.8 horsepower motor for large businesses and smaller workshops with single-phase power.This machine incorporates a top quality 4.8 horsepower motor for large businesses and smaller workshops with single-phase power. See for yourself why the minimax si 315es stands in a class of its own.
Top performances: cast iron saw unit with 315 mm saw blade and scoring unit with independent motor. Best support in all machinings, thanks to the 330 mm width sliding table. Maximum precision and stability with the blades lifting by means of “dove-tail” guides system and the saw unit tilting by means of two, large, lateral trunnions.
Technical data
| si 315es | ||
| Max. sawblade diameter | mm / inches | 315 / 12 |
| Sawblade arbor size | mm / inches | 30 / 1.18 |
| Max. sawblade projection from table at 90°/45° | mm / inches | 101/71 3.98/2.8 |
| Cutting width on parallel fence (Rip capacity) | mm / inches | 1270 / 50 |
| Max. squaring stroke of sliding table saw | mm / ft | 3200 / 8.5 |
| Single-phase motor | Hp | 4.8 |
Bemærk
Det viste produkt kan afvige alt efter konfiguration af udstyr og tekniske detaljer. Vær opmærksom på leveringsomfang og produktbeskrivelse.
Tilbehør medfølger kun, hvis det er anført i leveringsomfanget
